Laying out the half-frames on a flat floor

The plans came with full size frames on paper. Only half of each frame was needed as the two halves were identical.

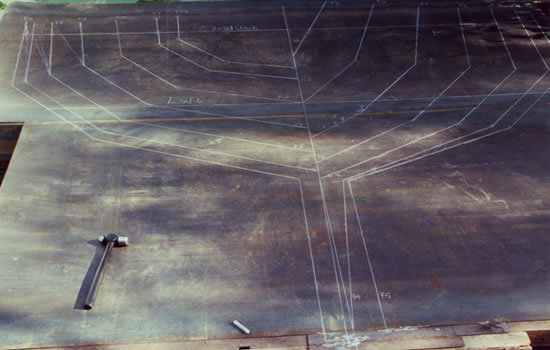

The lines were transferred to a flat floor. To improvise, I used some of the plating and tacked welded them together on some wooden framework. The result was flat and sturdy. I didn't use a punch on the plates - just used a white steel marker pen.
